Fine products supply | SKU:
BAT20LW1

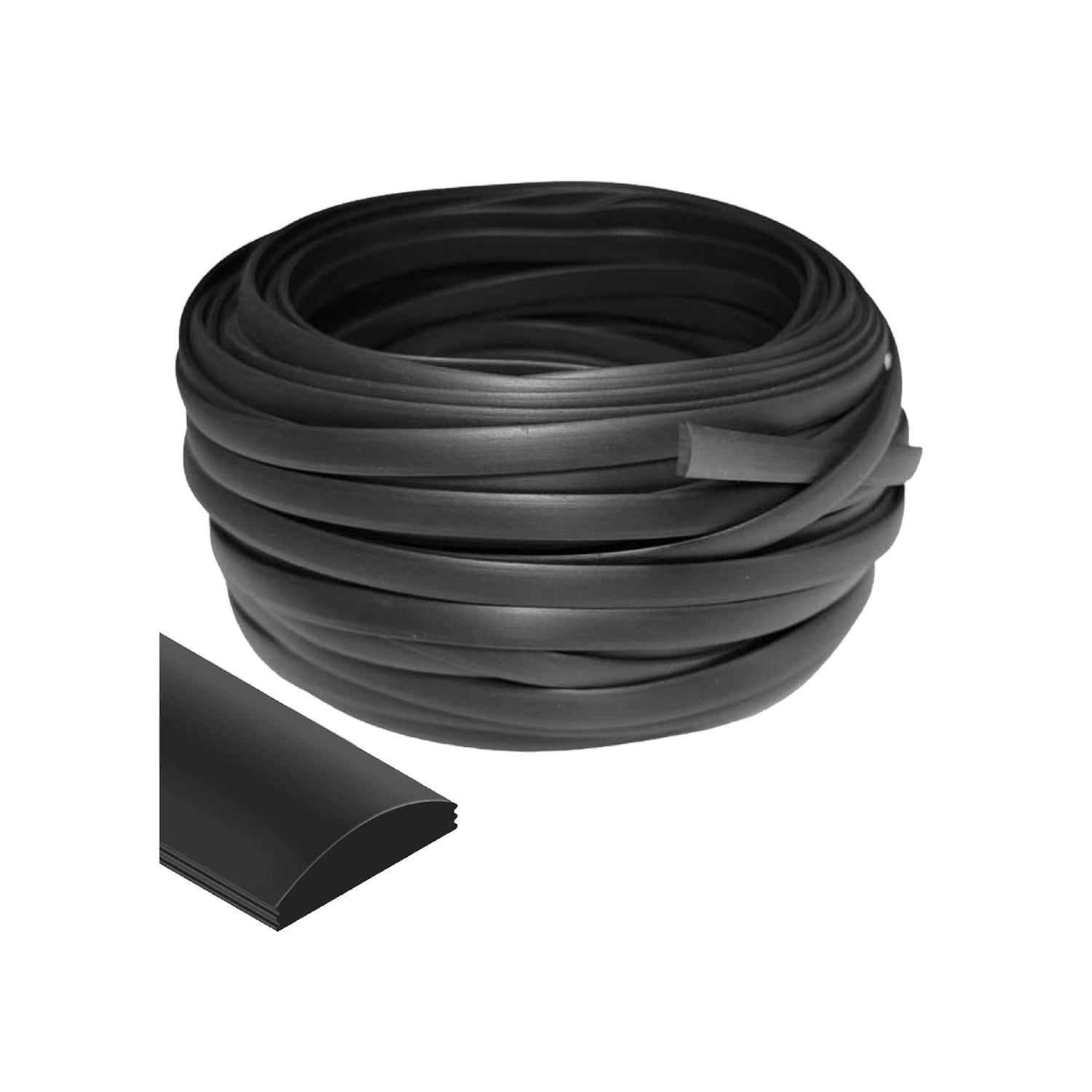

Flat Screen Spline 0.290 100ft Flat Retainer Spline for Screen Frames
Regular price
$16.59
Unit price
Shipping calculated at checkout.
Flat Screen Spline 0.290 100ft Flat Retainer Spline for Screen Frames is backordered and will ship as soon as it is back in stock.
Product Highlights
- Flat retainer profile is intended for compatible screen-frame grooves and fiberglass mesh installations.
- 0.290 inch profile helps installers choose the correct replacement spline for the channel.
- Flexible construction presses into place with a screen roller for a clean, secure finish.
- Useful for patio enclosures, storm doors, sliding doors, pool screens, porch screens, and repair work.
- 100ft provides enough material for planned replacement projects or contractor use.
Flat Screen Spline 0.290 100ft Flat Retainer Spline for Screen Frames
Regular price
$16.59
Unit price
Fine products supply | SKU:
BAT20LW1
Regular price
$16.59
Unit price
Shipping calculated at checkout.
Flat Screen Spline 0.290 100ft Flat Retainer Spline for Screen Frames is backordered and will ship as soon as it is back in stock.
| Family | Window & Door Screen |
|---|---|
| Type | Flat Screen Spline |
| Package | 100 Feet |
| Diameter / Fit | 0.290 inch |
| Format | 100ft |
| Construction | Flat retainer spline profile |
| Material | Vinyl |
| Color | Black |
| Finish | Black |
| Manufacturer | FINE PRODUCT SUPPLY |
| SKU / Product code | BAT20LW1 |
| Features | Easy to Install, Waterproof, Impact Resistance |
| Dimensions | 6 x 6 x 6 inches |
| Weight | 1.21 pounds |
- Fiberglass mesh installs
- aluminum screen frames
- patio enclosures
- porch screens
- storm doors
- pool screens
- Measure the channel: Use a caliper or coin test to measure the frame slot width.
- Select diameter: Buy a spline size roughly equal to your channel measurement (common sizes are .140, .160, or .175 inches). Thicker mesh may require a slightly smaller diameter spline.
- Material type: Pick hollow-core vinyl for easy DIY pressing, or flat/serrated styles depending on your specific door or window brand.

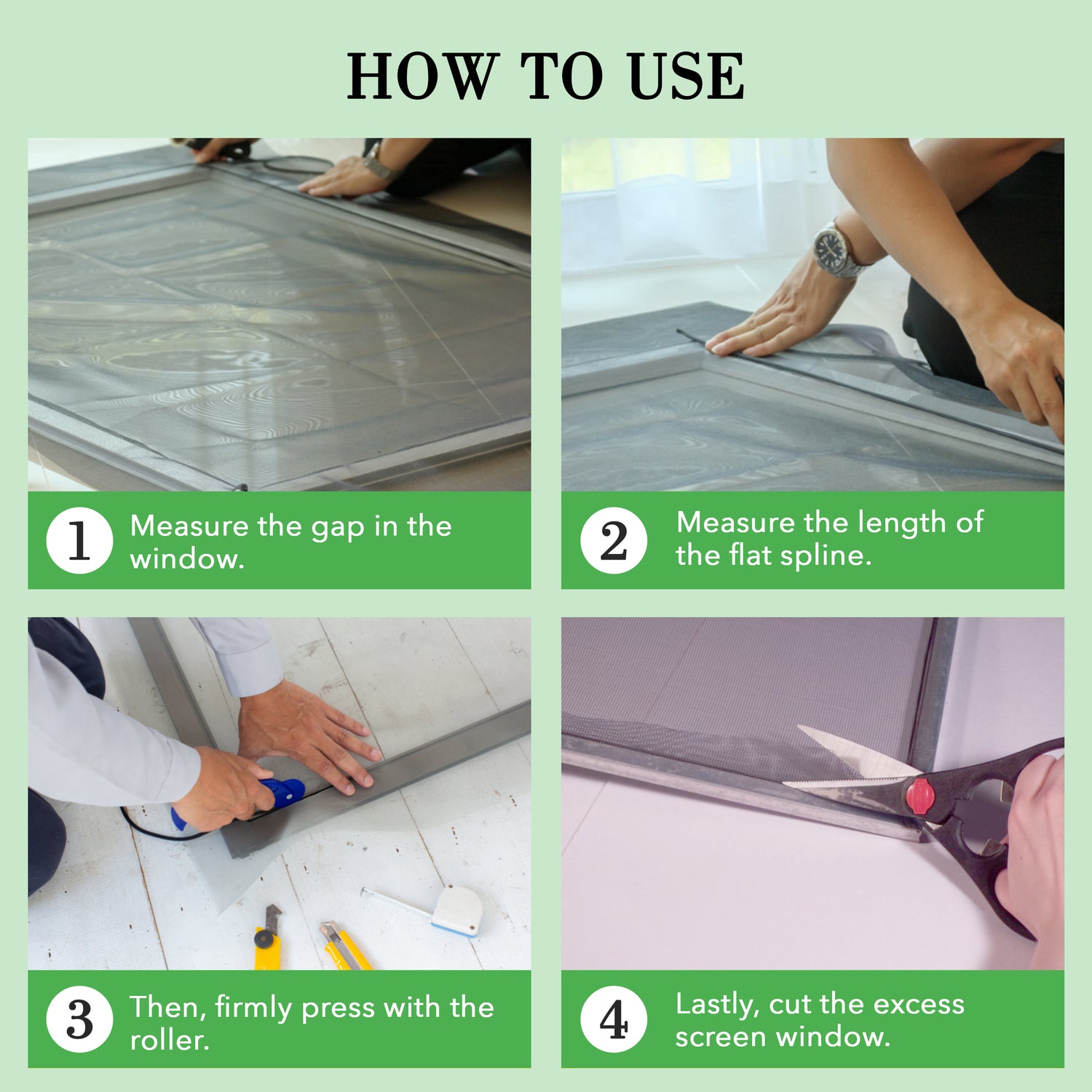

Installation Steps
- Remove old material: Pry out the old cord using a flathead screwdriver or pick tool.
- Position mesh: Lay new fiberglass or aluminum mesh flat over the frame.
- Roll in the cord: Use a spline roller tool to press the cord into the groove, starting at the corners and pulling the mesh taut as you roll.
- Trim excess: Run a sharp utility knife along the outer edge of the channel to cut away extra mesh.
Confirm that the frame uses a flat spline profile. Cut to length, align mesh, and press the spline into the groove with a roller.
Specifications
| Family | Window & Door Screen |
|---|---|
| Type | Flat Screen Spline |
| Package | 100 Feet |
| Diameter / Fit | 0.290 inch |
| Format | 100ft |
| Construction | Flat retainer spline profile |
| Material | Vinyl |
| Color | Black |
| Finish | Black |
| Manufacturer | FINE PRODUCT SUPPLY |
| SKU / Product code | BAT20LW1 |
| Features | Easy to Install, Waterproof, Impact Resistance |
| Dimensions | 6 x 6 x 6 inches |
| Weight | 1.21 pounds |
Applications
- Fiberglass mesh installs
- aluminum screen frames
- patio enclosures
- porch screens
- storm doors
- pool screens
Installation Instructions
- Measure the channel: Use a caliper or coin test to measure the frame slot width.
- Select diameter: Buy a spline size roughly equal to your channel measurement (common sizes are .140, .160, or .175 inches). Thicker mesh may require a slightly smaller diameter spline.
- Material type: Pick hollow-core vinyl for easy DIY pressing, or flat/serrated styles depending on your specific door or window brand.
Installation Steps
- Remove old material: Pry out the old cord using a flathead screwdriver or pick tool.
- Position mesh: Lay new fiberglass or aluminum mesh flat over the frame.
- Roll in the cord: Use a spline roller tool to press the cord into the groove, starting at the corners and pulling the mesh taut as you roll.
- Trim excess: Run a sharp utility knife along the outer edge of the channel to cut away extra mesh.
Notes
Confirm that the frame uses a flat spline profile. Cut to length, align mesh, and press the spline into the groove with a roller.
Product features
Compare related products
| Details | ||||
|---|---|---|---|---|
| Price | $16.59 | $29.99 | $49.99 | $72.99 |
| Availability | In stock | Out of stock | Out of stock | In stock |
| Product family | Window & Door Screen | Window & Door Screen | Window & Door Screen | Window & Door Screen |
| Product type | Flat Screen Spline | Flat Screen Spline | Flat Screen Spline | Flat Screen Spline |
| Package | 100 Feet | 250 Feet | 500 Feet | 1000 Feet |
| Diameter / Fit | 0.290 inch | 0.290 inch | 0.290 inch | 0.290 inch |
| Format | 100ft | Spool | Spool | Roll |
| Construction | Flat retainer spline profile | Flat retainer spline profile | Flat retainer spline profile | Flat retainer spline profile |
| Material | Vinyl | Vinyl | Vinyl | Vinyl |
| Color | Black | Black | Black | Black |
| Finish | Black | Black | Black | Black |
| Dimensions | 6 x 6 x 6 inches | 6 x 6 x 6 inches | 6 x 6 x 6 inches | |
| Item weight | 1.21 pounds | 1.21 pounds | 1.21 pounds |
